RUIHUI MAC4 Coil Feeder Straightener Material Leveling Adjustment

Name: RUIHUI MAC4 Coil Feeder Straightener Material Leveling Adjustment
Brand: RUIHUI
Price: 1 USD

RUIHUI MAC4 Coil Feeder Straightener Material Leveling Adjustment Manufactures

Brand Name : RUIHUI

Model Number : MAC4-400

Certification : CE Certificate

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 Sets Per Month

Delivery Time : 60 work days

Packaging Details : Wooden Box or Vacuum Packing

Use : Sheet

Voltage : 380V/Customized

Power(W) : 10KW

Dimension(L*W*H) : 1900*1250*1600

Weight : 3T

Warranty : 1 Year

Product Name : NC Servo Straightener Feeder

Material Width : 70-400mm

Material Thickness : 0.6-6.0mm

Coil Weight : 5000kg

Work Roll Number : Upper 4 /down 3

Feed Roll Number : 1 set

Material : Metal

Power : 3 Phase 220V/380V/50HZ

Color : Customized

Contact Now

Auto Parts Stamping Processing, MAC Feeder, Material Leveling Adjustment, punch machine coil

www.ruihui.net

Ruihui feeder sets feeding, correction, material rack three-in-one automatic feeding device,Ruihui MAC feeder head debugging.
1. Feed roller pressure adjustment: By adjusting the pressure regulating valve, the upper roller and the lower roller can be prevented from slipping, and the pneumatic pressure is controlled at the same time to avoid crushing the material, causing indentation or slipping phenomenon.
2. Material offset: If the material starts to be offset incorrectly, it should be immediately confirmed whether the mold is parallel and placed in the center of the table. Whether the material enters the leveling machine at right angles and in the middle, this operation can be measured by the gage, if there is a slight irregularity You can slowly position by adjusting the left and right positions of the stopper wheel.
3. material leveling adjustment: material leveling principle: the leveling drum is arranged in a zigzag pattern, if the flattening roller on the inlet side is put down, the material is bent along the drum, if the flattening roller on the outlet side is pressed too much The material is bent downwards.
Generally, the inlet side is lowered to a position where the upper and lower flattening roll gaps are 1 to 1.5 mm smaller than the material thickness, and the outlet side is adjusted to be the same as the material gap (ordinary material).
RUIHUI MAC4 Coil Feeder Straightener Material Leveling Adjustment
Specification:

Model	MAC4-400	MAC4-600	MAC4-800	MAC4-1000
Stock Width(mm)	70-400	70-600	70-800	70-1000
Stock Thickness(mm)	0.6~6.0	0.6-6.0	0.6-6.0	0.6-6.0
Max.Coil Weight(kg)	5000	5000	7000	7000
Max.Coil O.D.(mm)	1200	1200	1200
Coil I.D.(mm)	8	8	508	508
Feed Length(mm)	~500*	~500*	~500*	~500*
Max. Line Speed(m/min)	16-24	16-24	16-24	16-24
Work Roll Number(pieces)	upper 4 lower 3	upper 4 lower 3	upper 4 lower 3	upper 4 lower 3
Feed Roll Number(set)	1	1	1	1
Main Motor(kw)	AC5.5	AC7.5	AC7.5	AC11.0
Mandrel Expansion	hydraulic	hydraulic	hydraulic	hydraulic
Reel Motor(kw)	2.2	2.2	3.7	3.7
Power(V)	3 Phase 220V/380V/50HZ
Operating Air(Mpa)	0.49	0.49	0.49	0.49

Straigtening performance:

tock Thicknees (mm)	Stock Width (mm)
0.3	400	500	600	800
0.4
0.6
0.8
1.0
1.2
1.4
1.6			470	470
1.8			400	400
2.0			360	360
4.5	361	361	361	361
5.0	293	293	293	293
6.0	203	203	203	203

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
RUIHUI MAC4 Coil Feeder Straightener Material Leveling Adjustment

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.

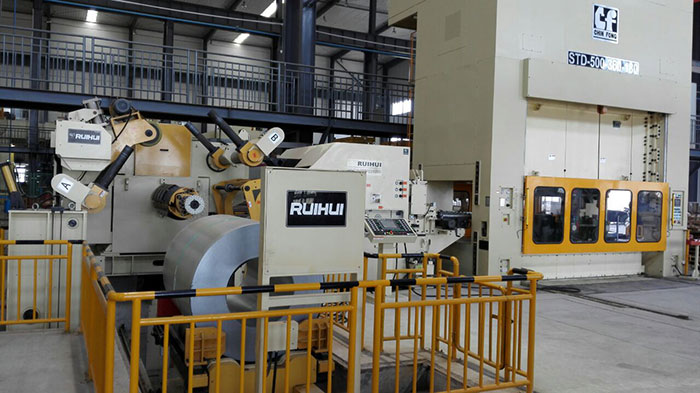

RUIHUI MAC4 Coil Feeder Straightener Material Leveling Adjustment Images
