Stamping Precision CNC Feeding Machine / Material Leveling Machine

Product Categories

Decoiler Straightener Feeder [223]
Coil Feeder Straightener [92]
Decoiler And Straightener [89]
Nc Servo Roll Feeder [79]
High Speed Feeder [50]
NC Leveler Feeder [47]
Metal Sheet Straightening Machine [52]
Decoiling And Straightening Machine [47]
Strip Straightener Machine [46]
Steel Plate Straightening Machine [42]
Steel Coil Uncoiler [70]
Sheet Metal Decoiler [70]

GUANGDONG RUIHUI INTELLIGENT TECHNOLOGY CO., LTD.

Contact Now

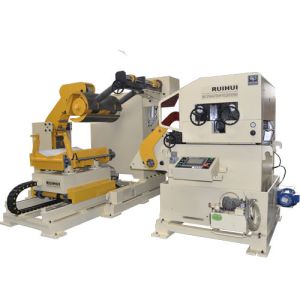

Stamping Precision CNC Feeding Machine / Material Leveling Machine

Name: Stamping Precision CNC Feeding Machine Material Leveling Machine
Brand: RUIHUI
Price: 1 USD

Stamping Precision CNC Feeding Machine / Material Leveling Machine Manufactures

Brand Name : RUIHUI

Certification : CE, ISO certification

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 Sets Per Month

Delivery Time : 30 work days

Packaging Details : Wooden Box or Vacuum Packing

New : Type

Straightener Feeder & Uncoiler : Use

Sheet : Place of Origin

Guangdong, China (Mainland) : Brand Name

RUIHUI : Voltage

380V/Customized : Power(W)

15KW : Dimension(L*W*H)

3630*2650*2460 : Weight

7T : Certification

CE ISO : Warranty

1 Year : Product Name

Material Width : 70~600mm

Material Thickness : 0.6~6.0mm

Coil weight : 5000kg

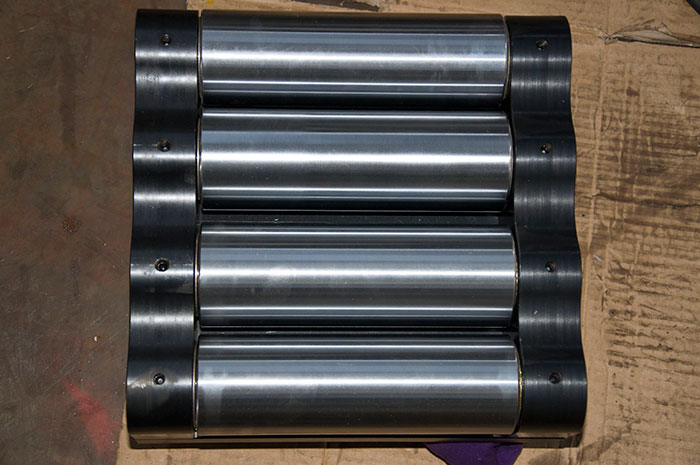

Work Roll Number : Upper 4 /down 3

Feed roll number : 1set

Material : Metal

Color : Customized

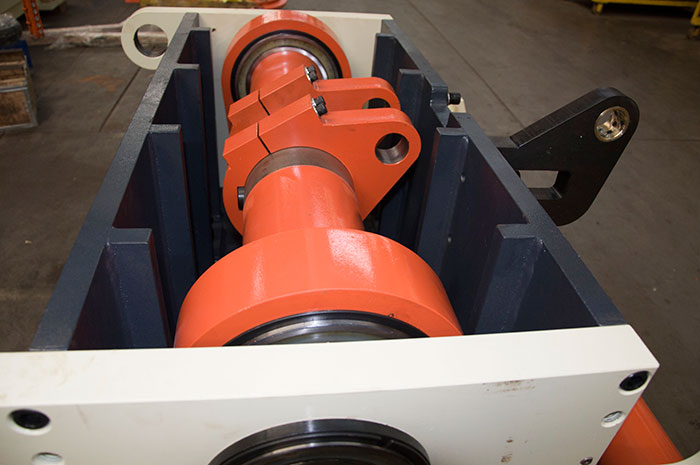

Mandrel Expansion : Hydraulic

Electrical component brand : YASKAWA Japan/MITSUBISHI Japan

After-sales Service Provided : Engineers available to service machinery overseas

Contact Now

CNC Feeding Machine Stamping Precision, Guangdong Ruihui Stamping Equipment, Hangzhou Feeder, Silicone feeder

www.ruihui.net

CNC feeder is an effective way to solve the stamping efficiency of low-speed mechanical presses. However, in our country in recent decades, there are still a large number of mechanical and even manual feeding, and the numerical control of presses is still relatively small, but in the rapid press CNC Today, the system still needs to improve productivity by transforming ordinary mechanical presses, while saving labor costs.

At present, the maximum punching frequency allowed for punch presses with CNC feeders is generally not more than 600 beats/min, and for high-speed stamping, the feed distance is not more than 30 mm each time. When the stamping frequency exceeds 100 beats/min, no exception is required. CNC feeder!

1. The flexibility of the CNC feeding system makes the punching frequency and the change of the progress distance only need to be intuitive and convenient through keyboard input, and can be directly changed without stopping the machine!

2. the programming stamping, using positive and negative values, so that the CNC feeder to achieve integrated two-way feeding, while ensuring the precision of stamping, to achieve the purpose of improving production!

3. The CNC feeder replaces the complicated mechanical transmission mode at the same time, which conveniently solves the complicated synchronization mode between the feeder and the press, achieving faster, more accurate and more efficient!

Stamping Precision CNC Feeding Machine / Material Leveling Machine

Specification:

Model	MAC2-400	MAC2-500	MAC2-600		MAC2-800
Stock Width(mm)	50-400	50-500	50-600		50-800
Stock Thickness(mm)	0.3~3.2	0.3-3.2	0.3-3.2		-3.2
Max.Coil Weight(kg)	3000	3000	3000	5000	5000	7000
Max.Coil O.D.(mm)	1200	1200	1200
Coil I.D.(mm)	8	8	508		508
Feed Length(mm)	~500*	~500*	~500*		~500*
Max. Line Speed(m/min)	16-24	16-24	16-24		16-24
Work Roll Number(pieces)	upper 6 lower 5	upper 6 lower 5	upper 6 lower 5		upper 6 lower 5
Feed Roll Number(set)	1	1	1		1
Main Motor(kw)	AC2.9	AC2.9	AC4.4		AC4.4
Mandrel Expansion	hydraulic	hydraulic	hydraulic		hydraulic
Reel Motor(kw)	1.5	1.5	1.5	2.2	2.2	3.7
Power(V)	3 Phase 220V/380V/50HZ
Operating Air(Mpa)	0.49	0.49	0.49		0.49

Straigtening performance:

tock Thicknees (mm)	Stock Width (mm)
0.3	400	500	600	800
0.4
0.6
0.8
1.0
1.2
1.4
1.6			470	470
1.8			400	400
2.0			360	360
2.3	300	300	300	300
2.5	230	230	230	230
2.8	150	150	150	150
3.2	110	110	110	110

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi
Stamping Precision CNC Feeding Machine / Material Leveling Machine

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
