Steel Plate Roll Material Straightener Feeder Machine Material Frame Stamping

Name: Steel Plate Roll Material Straightener Feeder Machine Material Frame Stamping
Brand: RUIHUI
Price: 1 USD

Steel Plate Roll Material Straightener Feeder Machine Material Frame Stamping Manufactures

Brand Name : RUIHUI

Model Number : (MAC2-300)

Certification : CE, ISO certification

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 Sets Per Month

Delivery Time : 30 work days

Packaging Details : Wooden Box or Vacuum Packing

Stock Width(mm) : 70-1000

Stock Thickness(mm) : 0.6-6.0

Line Speed(m/min) : 16~24

Coil Weight(Kg) : 7000

Work Roll Number(Pcs) : upper 6/lower 5

Main Motor(Kw) : AC 11.0

Warranty Period : 12 Months

Max.Coil O.D.(mm) : 1400

Coil I.D.(mm) : 508

Feed Length(mm) : ~500*

Mandrel Expansion : Hydrauilc

Reel Motor(kw) : 2.2

Operating Air(Mpa) : 0.49

Contact Now

Steel plate roll material straightening machine, material frame stamping, parts feeder

The hydraulic heavy-duty material frame is a common supporting facility for heavy-duty stamping production lines. It has two functions. One is to support the material by tensioning the inner diameter of the coil material; the other is to drive the material through the rotation of the main shaft of the rack. Feed into the follow-up machine (leveler or feeder).

The completion of the tension is achieved by pushing the lever with the cylinder mounted with the spindle; the completion of the rotation is achieved by the motor rotating the spindle through the reducer.

The cylinder mounted on the main shaft of the rack should run synchronously with the main shaft, and the two cylinders of the cylinder end need to be connected to the hydraulic station. Therefore, a special device is required to realize one end of the fixed end.

Improvement of heavy material shingles

The expansion and contraction reel of the heavy-duty material frame consists of four tiles, leaving gaps between the plates for expansion and contraction. Ordinary heavy-duty material shingles are long straight seams. During operation, it is found that due to the large curvature of the steel strip tail, the gap between the shingles is often inserted, and the shingles are hooked, causing damage to the equipment.

When designing and producing heavy-duty material racks, Ruihui Machinery changed the tile to the scraped staggered tile. The tile and the tile are interdigitated and interlaced, and the length of the staggered straight seam is less than the minimum bandwidth, which avoids damage to the material frame by the tailings.

Specifications:

Model	MAC4-600F	MAC4-800F	MAC4-1000F	MAC4-1300F
Stock Width(mm)	70~600	70~800	70~1000	70~1300
Stock Thickness(mm)	0.6~6.0	0.6~6.0	0.6~6.0	0.6~6.0
Max.Coil Weight(kg)	5000	5000	7000	10000
Max.Coil O.D.(mm)	1400	1400	1400	1400
Coil I.D.(mm)	508	508	508	508
Feed Length(mm)	~500*	~500*	~500*	~500*
Max.Line Speed(m/min)	16~24	16~24	16~24	16~24
Work Roll Number(piece)	upper 6/lower 5	upper 6/lower 5	upper 6/lower 5	upper 6/lower 5
Feed Roll number(set)	1	1	1	1
Main Motor	AC7.5	AC11.0	AC11.0	AC11.0
Mandrel Expansion	Hydrauilc	Hydrauilc	Hydrauilc	Hydrauilc
Reel Motor(kw)	2.2	2.2	3.7	7.5
Power(v)	3 Phase 220V/380V/50HZ
Operating Air(Mpa)	0.49	0.49	0.49	0.49

Straightening Performance:

Model		MAC4-600F	MAC4-800F	MAC4-1000F	MAC4-1300F
Stock Thickness (mm)	0.8~2.3	600	800	1000	1300
	2.8		800	933	933
	3.2		714	714	714
	4.0	457	457	457	457
	4.5	361	361	361	361
	5.0	293	293	293	293
	6.0	203	203	203	203

Products:

Steel Plate Roll Material Straightener Feeder Machine Material Frame Stamping

1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.

2. After-Sales service:We have an efficient team to meet 24*7 all day service.

3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.

4. Engineers can provide service machinery overseas.

Product Tags:

coil feeder straightener

coil handling equipment

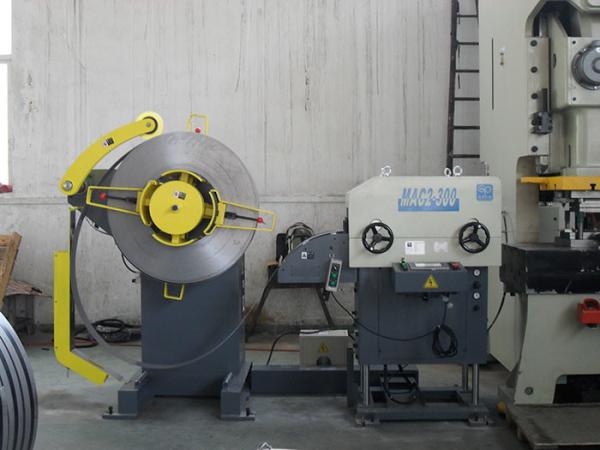

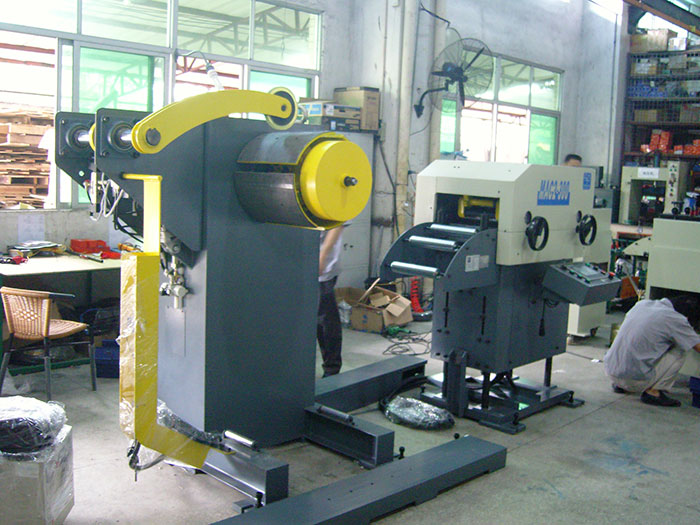

Steel Plate Roll Material Straightener Feeder Machine Material Frame Stamping Images
