Clip Type Automatic Press Feeding Equipment High Punching Precision Smooth Feeding
The clip feeder is driven by a cam and uses a curved cam and three plate cams to achieve high-speed and smooth feeding.
Built-in inspection mechanism to detect blockage or deformation of materials. The 165 degree feed section angle allows the material to stay longer in the press.
Combined with the mold guiding pin, the release time of the material during guiding can be adjusted. It can transport round or square wires.
Advantages of the clip feeder: The feeding speed can be synchronized with the punching machine, and the speed can be as fast as 1200 times/min. The feeding precision is higher, more stable, and the machine is lighter and smaller.
Suitable for feeding processing of ultra-thin materials, such as connectors, lead frames, and inspection parts, such as high-precision and high-speed stamping.
Disadvantages of the clip feeder: generally used for material feeding in 0.1~0.5mm, the scope of application is small, and the price is relatively high.

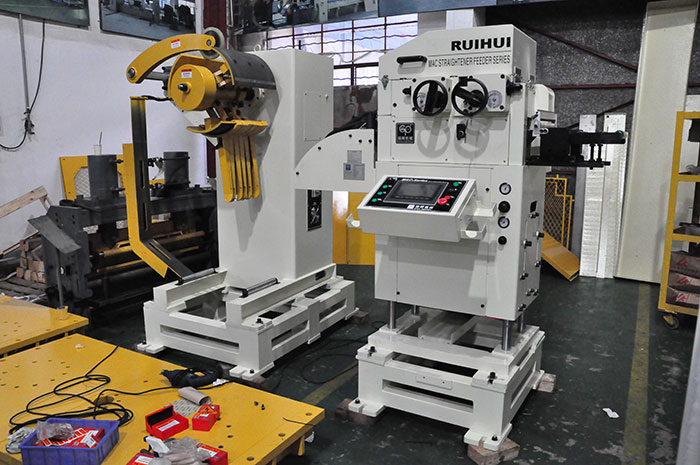

Specifications:
| Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F |
| Stock Width(mm) | 70~600 | 70~800 | 70~1000 | 70~1300 |
| Stock Thickness(mm) | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 | 0.6~6.0 |
| Max.Coil Weight(kg) | 5000 | 5000 | 7000 | 10000 |
| Max.Coil O.D.(mm) | 1400 | 1400 | 1400 | 1400 |
| Coil I.D.(mm) | 508 | 508 | 508 | 508 |
| Feed Length(mm) | ~500* | ~500* | ~500* | ~500* |
| Max.Line Speed(m/min) | 16~24 | 16~24 | 16~24 | 16~24 |
| Work Roll Number(piece) | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 | upper 6/lower 5 |
| Feed Roll number(set) | 1 | 1 | 1 | 1 |
| Main Motor | AC7.5 | AC11.0 | AC11.0 | AC11.0 |
| Mandrel Expansion | Hydrauilc | Hydrauilc | Hydrauilc | Hydrauilc |
| Reel Motor(kw) | 2.2 | 2.2 | 3.7 | 7.5 |
| Power(v) | 3 Phase 220V/380V/50HZ |
| Operating Air(Mpa) | 0.49 | 0.49 | 0.49 | 0.49 |
Straightening Performance:
| Model | MAC4-600F | MAC4-800F | MAC4-1000F | MAC4-1300F |
Stock Thickness
(mm) | 0.8~2.3 | 600 | 800 | 1000 | 1300 |
| 2.8 | 933 | 933 |
| 3.2 | 714 | 714 | 714 |
| 4.0 | 457 | 457 | 457 | 457 |
| 4.5 | 361 | 361 | 361 | 361 |
| 5.0 | 293 | 293 | 293 | 293 |
| 6.0 | 203 | 203 | 203 | 203 |

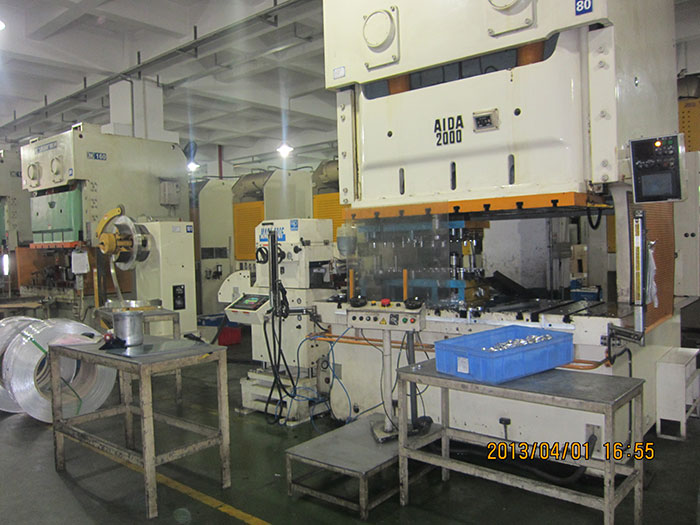

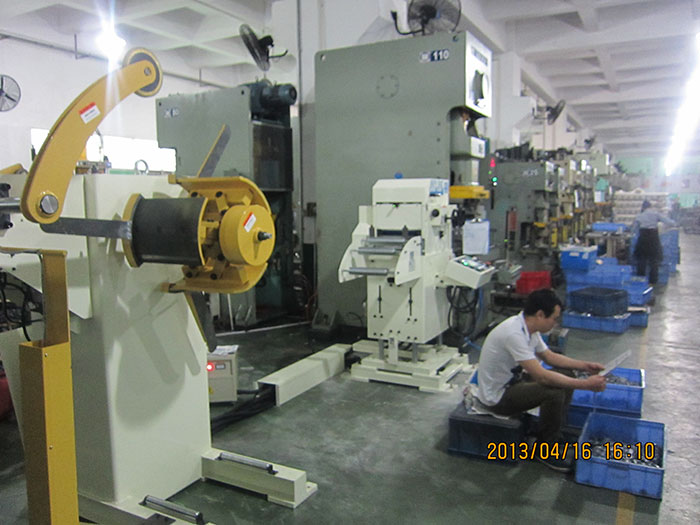

Products:
1. Pre-Sales Service:We have professional designers to meet the different requirement of our customers.
2. After-Sales service:We have an efficient team to meet 24*7 all day service.
3. Full-Service:Actively cooperate with customers to deal with problems in equipment using.
4. Engineers can provide service machinery overseas.
